High-Density 4-inch ESD Safe Waffle Pack Tray For IC And Semiconductor Handling

High-Density 4-inch ESD Safe Waffle Pack Tray For IC And Semiconductor Handling

Наименование марки: Hiner-pack
Номер модели: ХН25142
МОК: 500 шт.
цена: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
Условия оплаты: 100% предоплата
Способность к поставкам: 2000 шт/день
Подробная информация
Место происхождения:
Китай
Сертификация:
RoHS、ISO
Матрица:
14x7=98ПК
Устойчивость к влажности:
До 90%
Размер полости:
11x4,3x1,67 мм
Вес Грузоподъемность:
Варьируется, обычно до 500 грамм на полость
УФ сопротивление:
Да
Коробление:
Менее 0,76 мм
Многоразовое использование:
Да
Приложение:
Обработка, хранение и доставка микросхем
Упаковывая детали:
70~100 шт/картон ((Согласно запросу клиента)
Поставка способности:
2000 шт/день
Выделить:

High-Density Waffle Pack Tray

,

ESD Safe IC Tray

,

4-inch Semiconductor Tray

Описание продукта

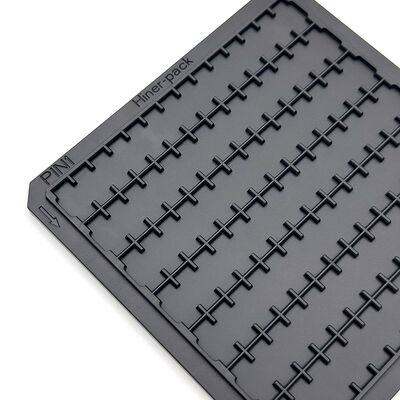

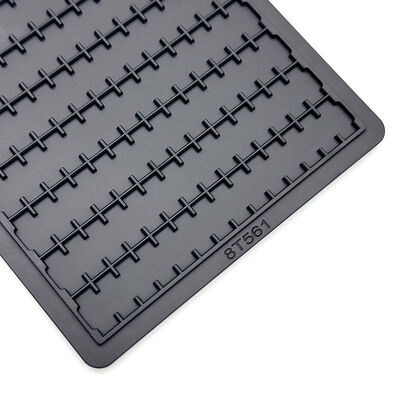

High-Density 4-inch Waffle Pack Tray
This high-density 4-inch waffle pack tray optimizes storage efficiency while maintaining static protection and handling precision. Ideal for devices requiring close pocket spacing without performance compromise.
Key Features/ Benefits
  • High density pocket layout
  • ESD safe design
  • Stackable
  • Durable structure
Specifications
Brand Hiner-pack
Model HN25142
Material ESD safe thermoplastic
Tray Type 4-inch waffle pack
Color Black
Surface Resistivity 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 101.6x101.6x5.5 mm
Pocket Size 11x4.3x1.67mm
Matrix QTY 14x7=98PCS
Warpage MAX 0.76mm
Service Accept OEM, ODM
Certifications RoHS, ISO
Applications
  • Inventory staging
  • Logistics preparation
  • High throughput lines

Customization:

The tray’s flexible design supports a wide range of customized configurations to meet specific production challenges:

•  Tailored Pocket Layouts: Adjust pocket size, count, or spacing to match non-standard part dimensions or shapes.

•  Color Coding Options: Use ESD-safe materials in selected colors for identifying product types, workstations, or production phases.

•  In-Mold Marking: Add customer-specific identifiers or tracking features during manufacturing for clear and permanent identification.

•  Specialized Alignment Features: Modify edges or add tool-specific indexing tabs to optimize performance in proprietary handling systems.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Factory-direct manufacturer of JEDEC & IC trays
  • JEDEC compliant, automation-compatible designs
  • OEM & ODM customization supported
  • Consistent quality and stable supply
  • Trusted by global semiconductor customers
